Kuripla Bridge

Award winning bridge, in fact, the world’s largest hybrid tensegrity bridge, forming part of Brisbane River north-south access for foot and bicycle traffic.

History

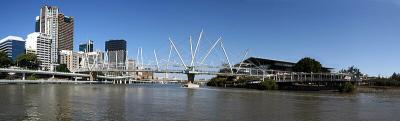

Kurilpa Bridge is the world’s largest hybrid tensegrity bridge. Only the horizontal spars conform to tensegrity principles.

The Kurilpa Bridge is a multiple-mast, cable-stay structure based on principles of tensegrity producing a synergy between balanced tension and compression components to create a light structure which is incredibly strong.

The bridge is 470 metres (1,540ft) long with a main span of 128 metres (420ft) and features two large viewing and relaxation platforms, two rest areas, and a continuous all-weather canopy for the entire length of the bridge.

A canopy is supported by a secondary tensegrity structure. It is estimated that 560 tonnes (620 short tons) of structural steel including 6.8 kilometres (4.2 mi) of helical strand cable are incorporated into the bridge.

The bridge structure comprises 18 structural steel bridge decks, 20 structural steel masts and 16 horizontal spars or in layman's terms horizontal masts.

Seventy two precast concrete deck slabs sit on the main bridge deck and are secured to the steel structure and together by in-situ concrete stitch pours. [citation needed].

The complex cabling system comprises 80 main galvanised helical strand cables and 252 tensegrity cables that are made from superduplex stainless steel. [citation needed].

The piecing together of these elements was the highest risk on the project, where any error in the dimension of one of the elements would have halted the critical path of the project.

it is a huge testament to all in involved in the design and in particular the construction of the superstructure that it was achieved to within 13mm of its planned vertical position in its final state at the centre of the bridge[citation needed].

The bridge is lit with a sophisticated LED lighting system which can be programmed to produce an array of different lighting effects. Depending on lighting configurations, 75-100% of the power required is provided by solar energy.

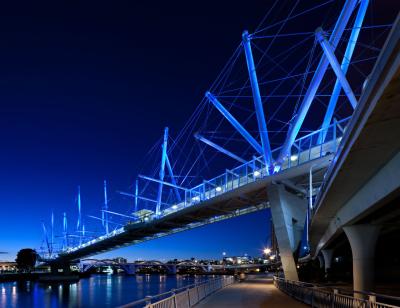

All electrical work was done by Stowe Australia.  The image depicts the bridge at night with the lighting.
